Motor Mover Coupler Repair – How I Fixed Mine
If your caravan motor mover engages but doesn’t move the caravan, the issue could be a failed motor mover coupler between the motor and the drive unit. This small part is designed to fail under excessive strain—saving other components from damage.
I encountered this problem firsthand when I accidentally left the caravan handbrake on while trying to use the motor mover. Here’s how I diagnosed and fixed it myself.
Symptoms of a Failed Motor Mover Coupler
- You can hear the motor engaging, but the rollers only move slightly or don’t transfer power to the wheels.
- The mover doesn’t function, even though the battery is fully charged.
What Causes the Coupler to Fail?
The coupler is a small, weakened part designed to break under excessive strain to protect the motor and drive unit. Common causes of failure include:
- Trying to move the caravan with the handbrake on.
- Heavy loads putting excessive strain on the mover.
- General wear and tear over time.
How to repair a Motor Mover Coupler
Locate the Motor Mover Coupler
I reached out to Powrtouch, who confirmed that the issue was likely the coupler. However, they told me the coupler was not sold separately and I would have to purchase an entire new unit.

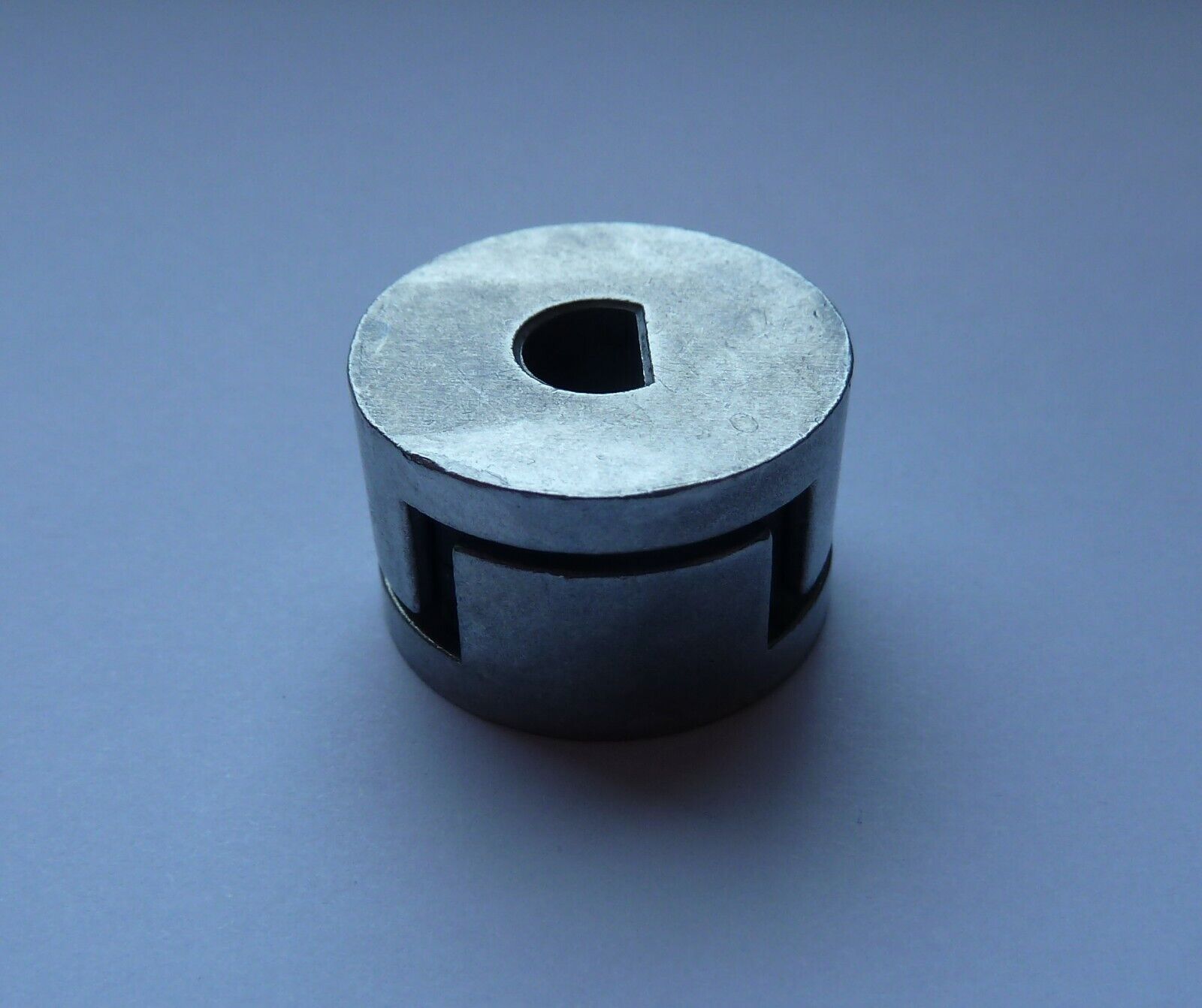

location of the Motor Mover Coupler
Finding a Replacement Coupler
Not wanting to spend unnecessary money, I searched online and found the exact coupler on eBay. It’s worth checking with independent sellers before committing to a full replacement unit.
Gaining Access to the Coupler
Accessing the motor and coupler was not easy. To remove the motor from the drive unit, I needed to:
- Remove the two power cables attached to the motor, taking note of which way round they go.

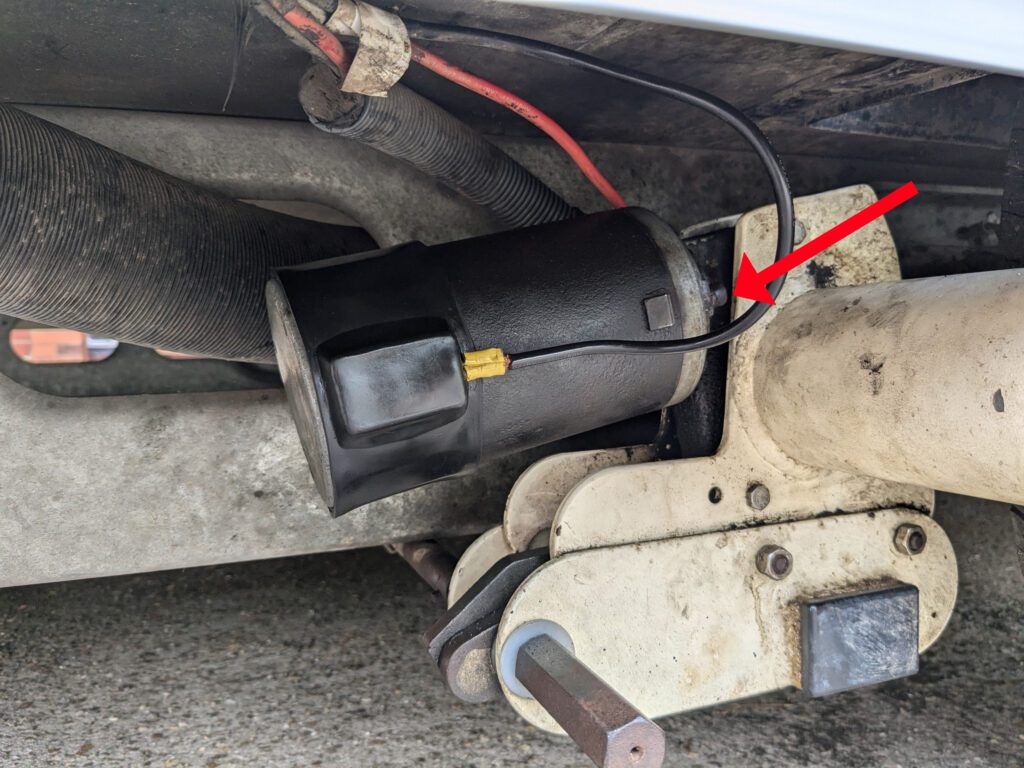

- Locate and remove the two Allen key bolts securing the motor to the drive unit.
To get to the bolts I had to Cut down an Allen key to fit the limited space, as access was very tight.
Replacing the Damaged Coupler
Once I removed the motor, I could get access to the motor mover coupler
The Motor mover coupler simply pulls out

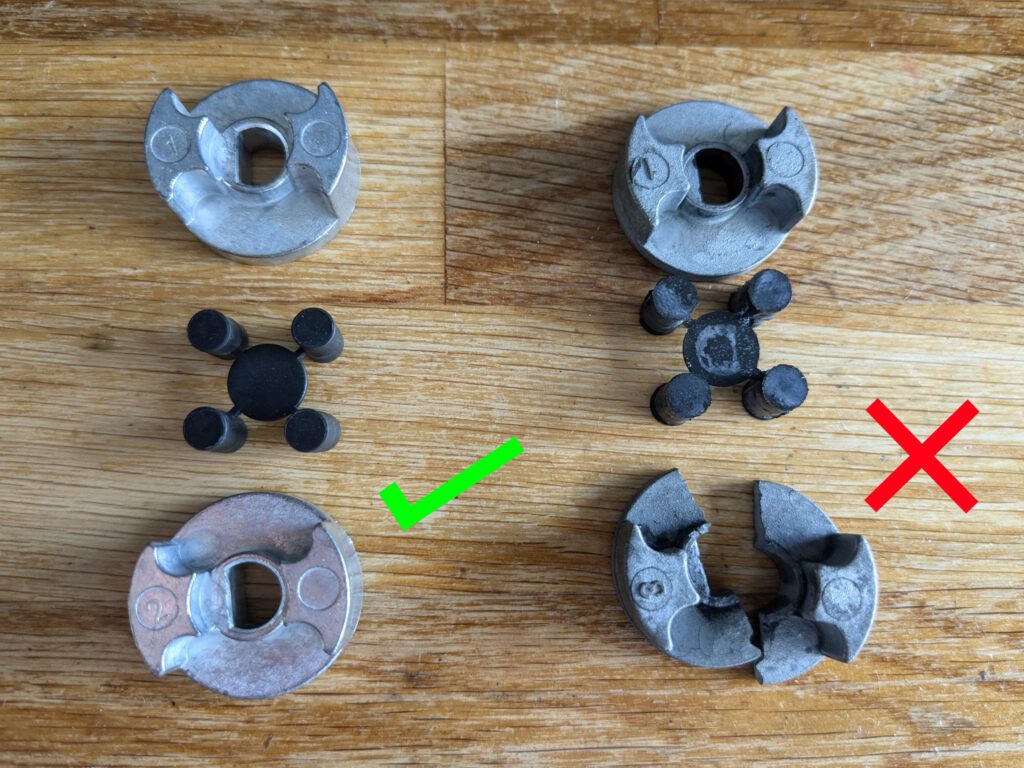

I could clearly see that the coupler was damaged.
I replaced it with the new motor mover coupler, ensuring it was fitted correctly.
Reattaching the Motor & Testing
I gave the whole unit a good clean, secured the motor back onto the drive unit and tested the mover—it worked perfectly! The fix was simple once I accessed the coupler.
Key Takeaways
✔ A motor mover not engaging properly may be due to a failed coupler.
✔ Some manufacturers do not sell couplers separately, but they can be found online.
✔ Replacing the coupler is a straightforward fix if you can access the motor unit.
If your motor mover stops working under strain, check the coupler before replacing the entire unit—it could save you a lot of money!
Other reasons your Motor Mover is not working
How do I know if my motor mover coupler has failed?
If the motor engages but the caravan does not move, the coupler could be broken. Remove the motor to inspect it.
Can I buy a replacement coupler?
Most manufacturers don’t sell them separately, but they can often be found on eBay or caravan parts retailers.
Do I need special tools to replace the coupler?
No, but space is tight, so you may need to modify an Allen key to remove the motor.
How can I prevent this from happening again?
Always release the handbrake before using the motor mover.
Avoid overloading the caravan, which can put excessive strain on the mover.
